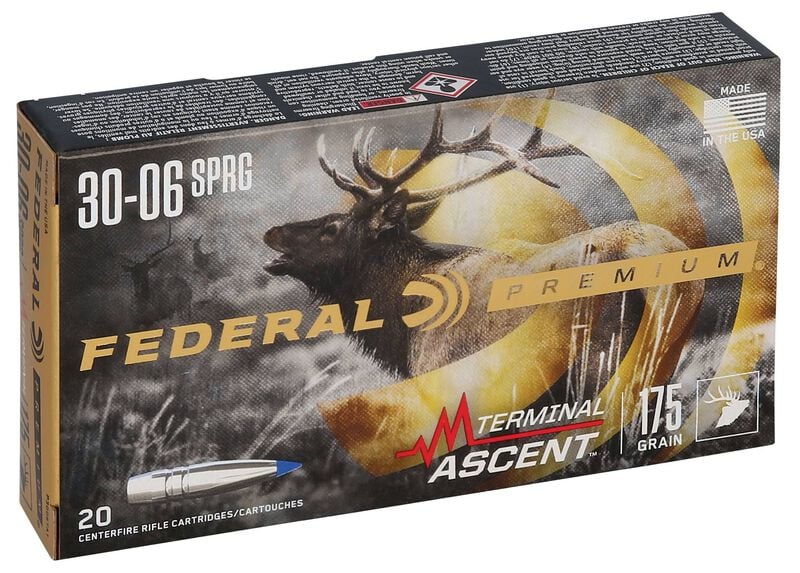

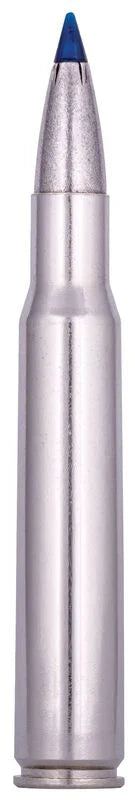

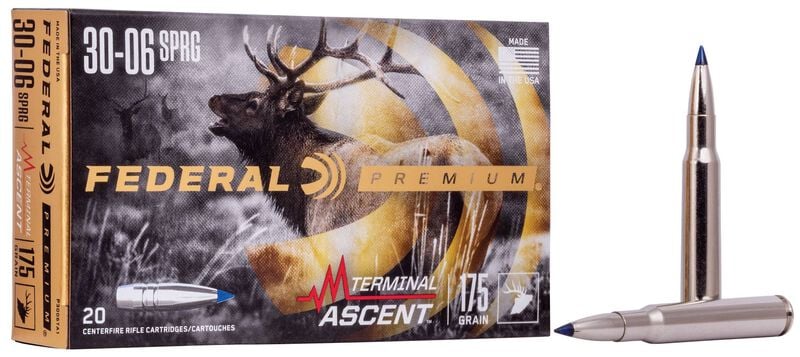

Federal- Terminal Ascent Ammunition- 30-06 SPRG, 175 Grain

Any hunt. Any range. Go beyond what you ever thought possible with Federal Premium® Terminal Ascent™ Bonded construction penetrates deep on close targets, while the patented Slipstream™ polymer tip initiates expansion at velocities 200 fps lower than comparable designs. The bullet's long, sleek profile offers an extremely high ballistic coefficient, and its AccuChannel™ groove technology improves accuracy and minimizes drag. Available in a full selection of long-range hunting cartridges.

• Match-grade long-range accuracy in a bonded hunting bullet
• Extremely high ballistic coefficient
• Exclusive Slipstream polymer tip helps flatten trajectories and initiate low-velocity expansion
• Less wind drift and drop
• AccuChannel groove technology minimizes drag
• Copper shank and bonded lead core retain weight for deep penetration at any range
• High-performance Gold Medal® primer

Specs

Caliber	30-06 Springfield
Grain Weight	175
Bullet Style	Terminal Ascent
Muzzle Velocity	2730
Ballistic Coefficient	.520
Ballistic Coefficient G7	.258
Bullet Length In	1.466in. / 37.236mm
Package Quantity	20
Usage	Big Game



Ballistics

Velocity in feet per second

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
2730	2558	2391	2232	2078	1930

Energy in Foot Pounds

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
2896	2542	2222	1935	1678	1447

Wind Drift in Inches (at 10 mph)

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
-0.0	0.7	2.6	6.2	11.4	18.2

Average Range

50 Y	100 Y	200 Y	300 Y
-0.1		-3.8	-13.7

Long Range

50 Y	100 Y	200 Y	300 Y	400 Y	500 Y
0.8	1.9		-8.1	-23.1	-45.9
