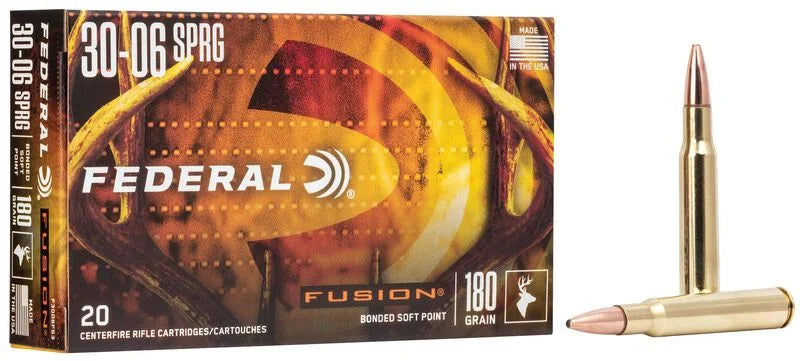

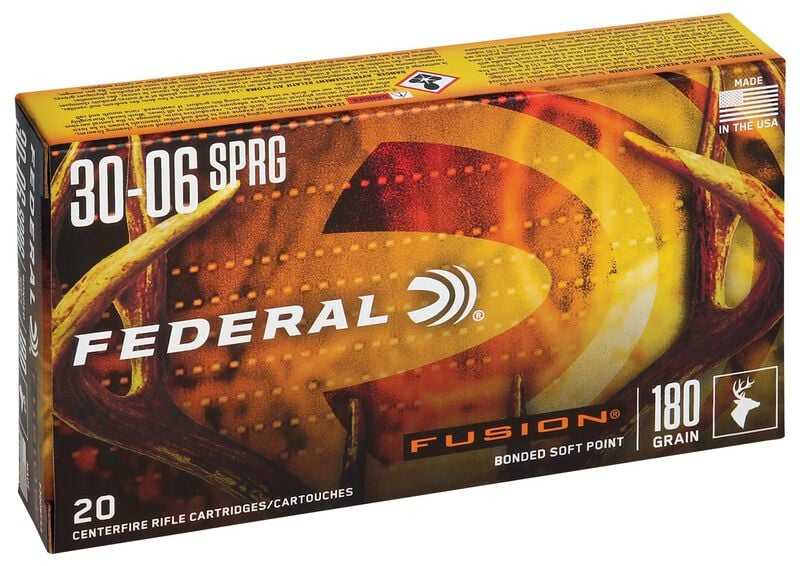

Federal- Fusion Bonded Soft Point Ammunition- 30-06 SPRG, 180 Grain

Fusion® was the first rifle ammunition specifically built for deer hunting—and it's still the best, offering the largest expansion and highest weight retention in head-to-head comparisons against the competition. With a molecularly bonded jacket and a pressure-formed core, Fusion transfers maximum energy on target.

• Copper jacket is electro-chemically bonded to the core, resulting in a perfectly uniform jacket
• Excellent accuracy
• Skived, pre-programmed nose provides consistent expansion
• Maximum weight retention for deep penetration

Specs

Caliber	30-06 Springfield
Grain Weight	180
Bullet Style	Fusion Soft Point
Muzzle Velocity	2700
Ballistic Coefficient	.498
Bullet Length In	1.210in. / 30.73mm
Terminal Performance Minimum Velocity	1900
Package Quantity	20
Usage	Medium Game

Ballistics

Velocity in feet per second

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
2700	2521	2349	2185	2026	1874

Energy in Foot Pounds

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
2913	2540	2206	1907	1640	1403

Wind Drift in Inches (at 10 mph)

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
0	0.7	2.7	6.6	12.1	19.4

Average Range

50 Y	100 Y	200 Y	300 Y
-0.1		-4.0	-14.3

Long Range

50 Y	100 Y	200 Y	300 Y	400 Y	500 Y
0.9	2.0		-8.4	-23.9	-47.8
