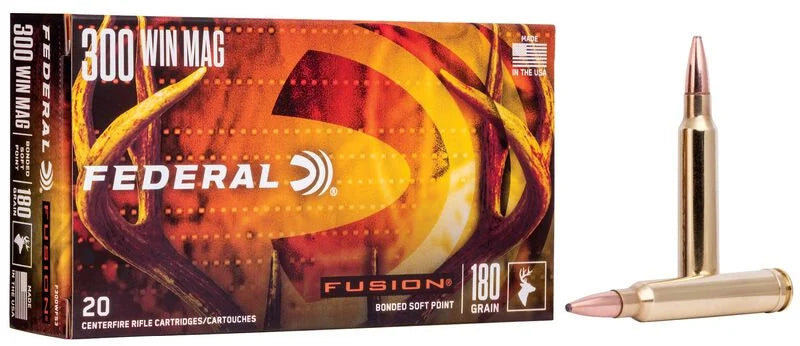

Federal- Fusion Bonded Soft Point Ammunition- 300 WIN MAG, 180 Grain

Fusion® was the first rifle ammunition specifically built for deer hunting—and it's still the best, offering the largest expansion and highest weight retention in head-to-head comparisons against the competition. With a molecularly bonded jacket and a pressure-formed core, Fusion transfers maximum energy on target.

• Copper jacket is electro-chemically bonded to the core, resulting in a perfectly uniform jacket
• Excellent accuracy
• Skived, pre-programmed nose provides consistent expansion
• Maximum weight retention for deep penetration

Rounds per box: 20

Specs

Caliber	300 Win Mag
Grain Weight	180
Bullet Style	Fusion Soft Point
Muzzle Velocity	2960
Ballistic Coefficient	.485
Bullet Length In	1.210
Terminal Performance Minimum Velocity	1900
Package Quantity	20
Usage	Long Range, Medium Game



Ballistics:

Velocity in feet per second

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
2960	2766	2580	2401	2230	2065

Energy in Foot Pounds

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
3502	3057	2659	2304	1987	1704

Wind Drift in Inches (at 10 mph)

Muzzle	100 Y	200 Y	300 Y	400 Y	500 Y
0	0.6	2.6	5.9	10.9	17.7

Average Range

50 Y	100 Y	200 Y	300 Y
-0.2		-3.1	-11.3

Long Range

50 Y	100 Y	200 Y	300 Y	400 Y	500 Y
0.6	1.5		-6.7	-19.5	-39.4
