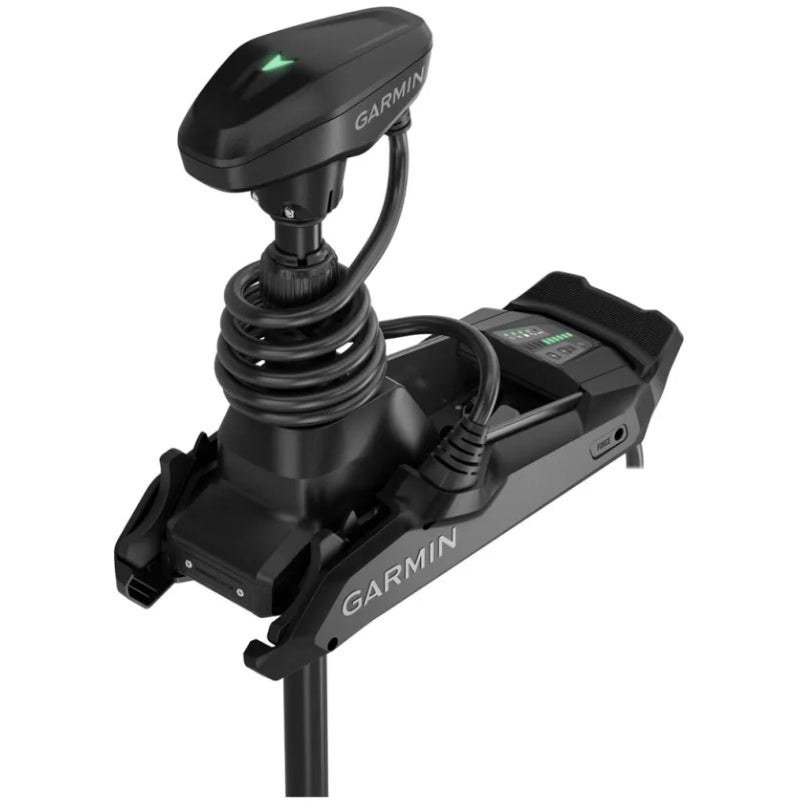

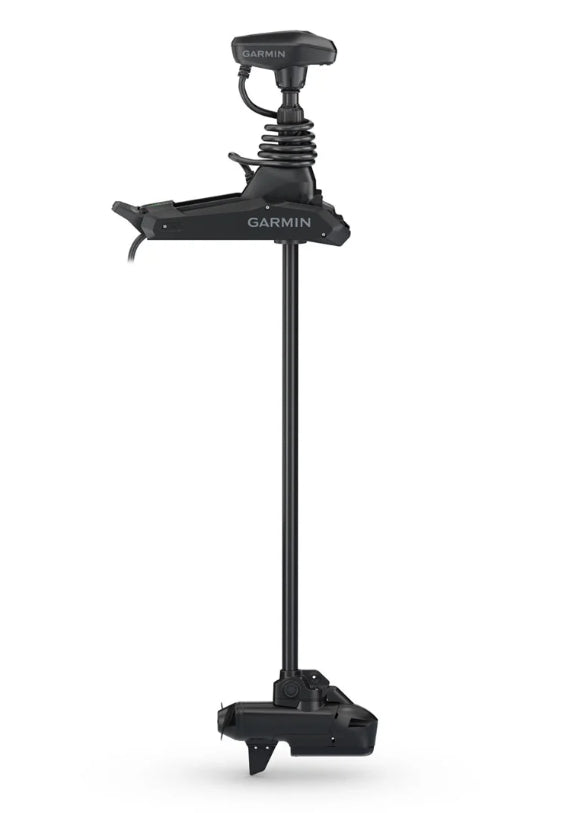

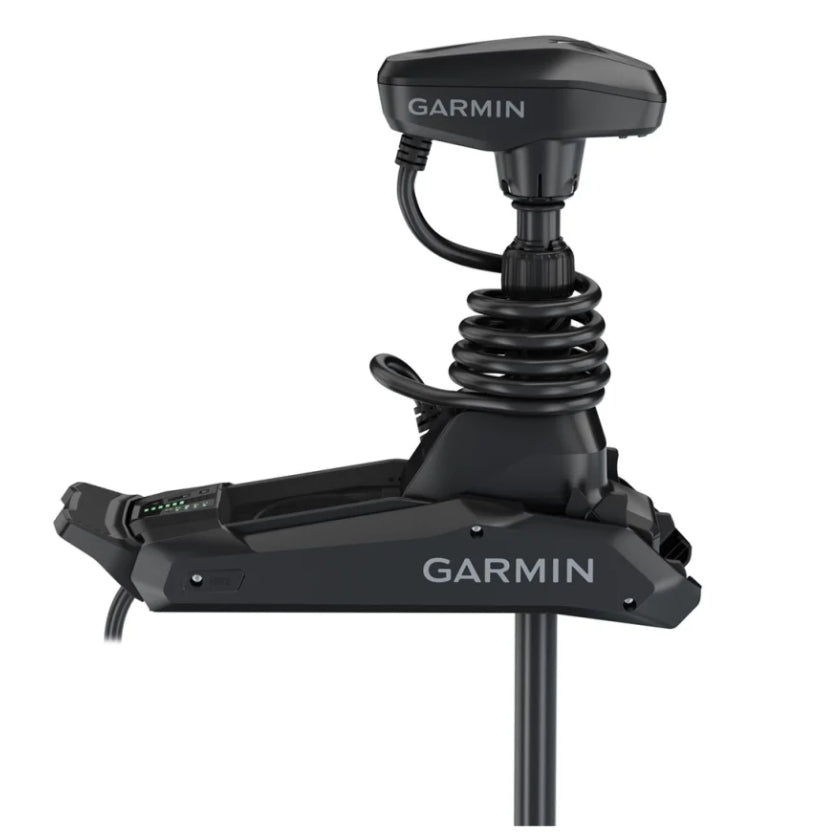

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.
HIGH POWERED
Force Kraken provides legendary power and performance with 100 lbs of thrust1.
POWER THAT LASTS
Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.
WHISPER QUIET
Don’t spook the fish; the motor is extremely quiet above and below the water.
PURPOSE-BUILT DESIGN
This trolling motor is optimized to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.
DESIGNED TO ENDURE
The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.
PERFECT FOR DEEP V HULLS
Get easy installation where bow space is limited, thanks to the pivot-style mount. The multiple shaft lengths accommodate many different boat sizes and deck configurations.
STAY PUT
The anchor lock provides our most precise boat positioning technology to help keep the boat in one place.
FLOATING REMOTE
Use the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology.
SMARTWATCH INTEGRATION
Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
Get brilliant UHD sonar with the included GT56 transducer.
ULTRA HIGH-DEFINITION SONAR PICTURE
The brushless motor allows for clear sonar returns with extremely low levels of unwanted noise.
LIVESCOPE CABLE MANAGEMENT
Keep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).
General
|
| Warranty |
3-year, limited lifetime on shaft |
| Color |
black |
| For use in |
freshwater, brackish water and saltwater |
| Mount style |
pivot-style mount |
| Max thrust |
100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 V |
| Voltage |
24 V or 36 V |
| Electric steering |
Yes |
| Built-in heading sensor |
Yes |
| Built-in GPS |
Yes (dual frequency GPS) |
| Water rating |
IPX7 |
| Mounting location |
bow |
| Wireless remote |
Yes (included) |
| Foot pedal compatible |
Yes |
| Battery indicator |
Yes |
| Variable speed control |
Yes (20 steps) |
| Lighted direction indicator |
Yes |
| quatix remote control supported |
Yes |
| Manual reverse control |
Yes |
Sonar Features
|
| Frequencies supported |
Traditional: High-wide CHIRP (150-240 kHz)
ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
|
| Transmit power |
Traditional: 350 W
ClearVü/SideVü: 500 W |
| Maximum depth |
CHIRP sonar: 800 ft freshwater
ClearVü: 400 ft; SideVü: 500 ft |
| Depth/speed/temperature |
depth and temperature |
| Number of pins |
12-pin (orange connector) |
| LiveScope cable integration |
yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
Autopilot Features
|
| Route following |
Yes |
| Anchor lock |
Yes |
| Smart Anchor Lock features |
Yes |
| Anchor lock jog |
Yes |
| Heading hold |
Yes |
| Cruise control |
Yes |
| Gesture features |
Yes (manual+, heading hold+, jog+) |
Remote Features
|
| Display size |
1.2" (30.2 mm) diameter |
| Display resolution |
240 x 240 pixels |
| Display type |
color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys |
Yes |
| Autopilot feature control |
Yes |
| Water rating |
IPX7 |
| Battery life |
typical use with backlight at low, 43 weeks |
| Floats |
Yes |
