Humminbird- Dual Spectrum CHIRP w/ Temp Transom Transducer, HELIX 7/8 MEGA DI
Final Sale - No refunds, returns, or exchanges.
Humminbird- Dual Spectrum CHIRP w/ Temp Transom Transducer, HELIX 7/8 MEGA DI is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Note: All discounted items (even if the discount is applied at checkout) are Final Sale. No returns, refunds, or exchanges.
Free shipping on orders over $199.99. Exclusions apply.
Description
Description

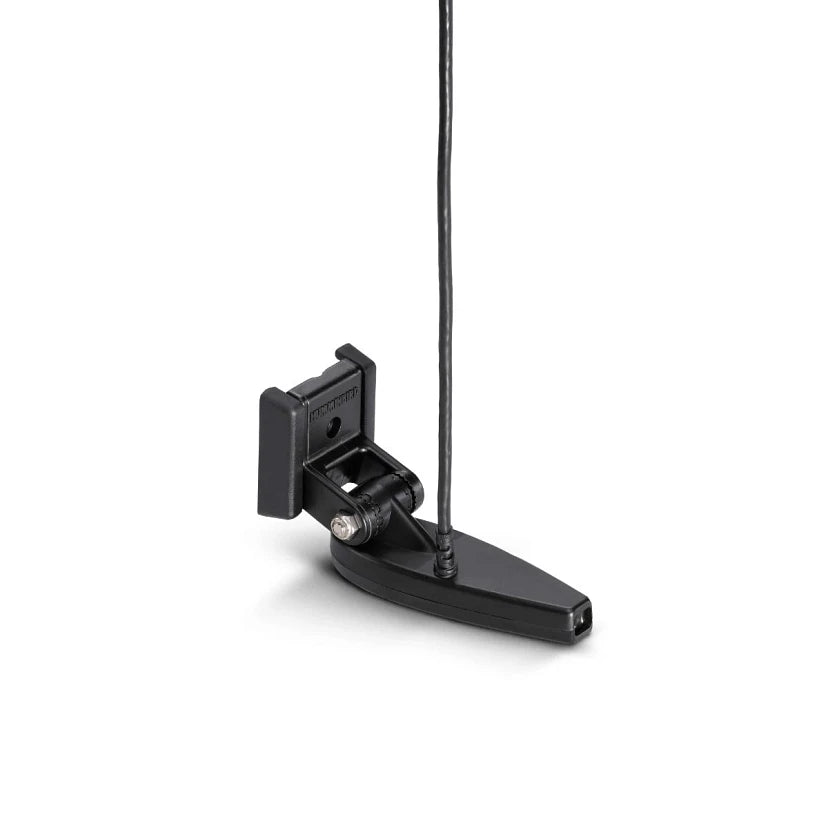

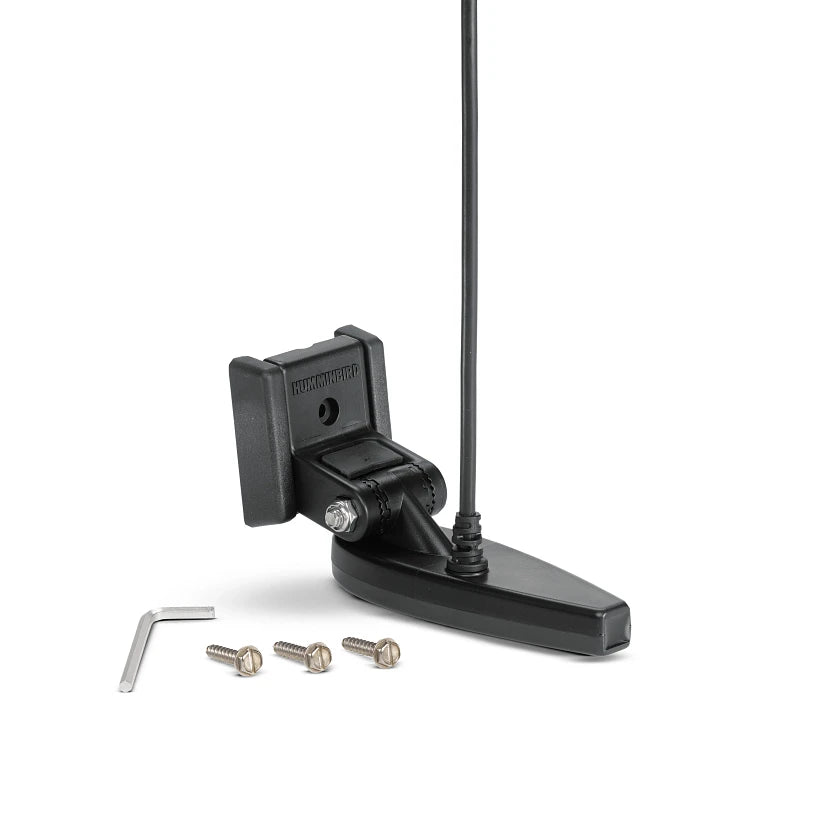

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/ 455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20’ cable.
-
Compatible With
- HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 7 MDI GPS G4N, HELIX 8 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G4N
-
Cable Length
- 20 feet
-
Dual Spectrum CHIRP Frequencies
- Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
-
Dual Spectrum CHIRP Max Depth
- 1200ft (365m)
-
MEGA Down Imaging Frequencies - Max Depth
- 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)
Procuct: XNT 9 HW MID T
