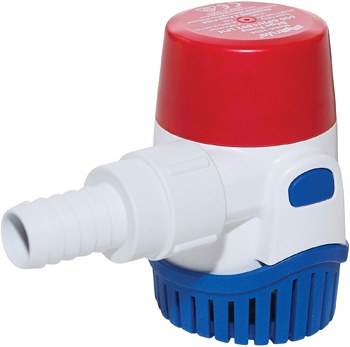

Rule- Model 25DA 500GPH Bilge Pump

• The Rule Next Generation Bilge Pump now includes a check valve to prevent back-flow into the bilge
  • Back flow prevention comes standard – means less water in the bilge, less pump cycling
  • Rule has created a hidden air vent to prevent airlocking
  • Under each strainer tab there is a small hole that vents any air trapped in the pump housing preventing airlocks
  • Higher flow
    • 500 GPH means true 500 GPH at 12 volts
    • Others require 13.6 volts to pump at their rated volume
  • Built-in thermal cell – protects the pump and the vessel if things get too hot
• Rule pumps have true electromagnetic suppression (EMC)
• They have a built-in thermal cell that protects the pump from overheating
• Like other "traditional" bilge pumps, these non-automatic pumps require a separate float, or other, activation switch for operation
• Non-automatic - used with a panel switch or Rule float switch
• Submersible
• Ignition protected
• High efficiency, low amp motor
• Stainless-steel shaft
• Includes backflow preventer

Specifications:

• GPH / LPH: 500 / 1890
• Power: 24 Volts DC
• Draw:
  • 0.8 Amps @ 24 Volts
• Fittings Included
• Check Valve Included
• Hose Diameter: 3/4" (19 mm)
